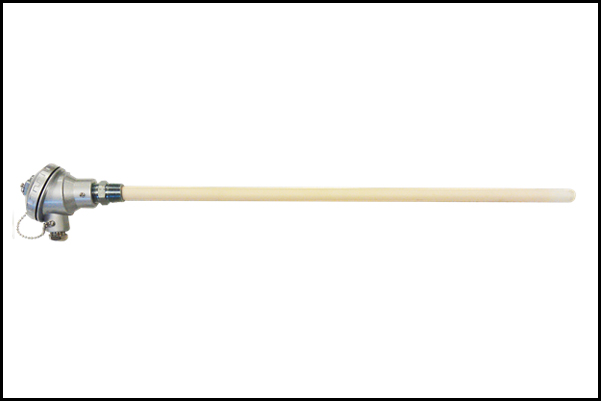

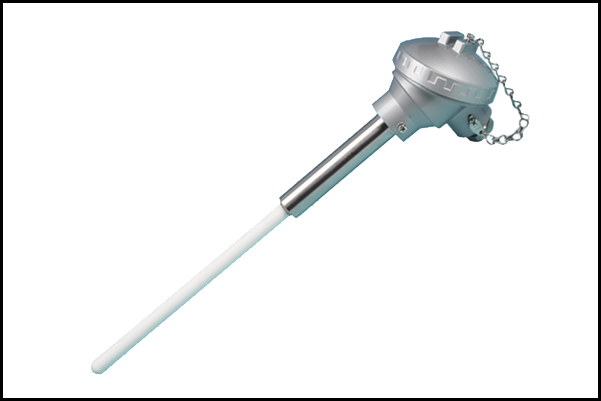

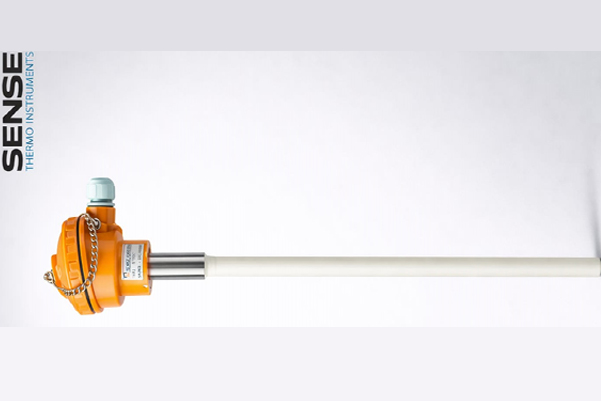

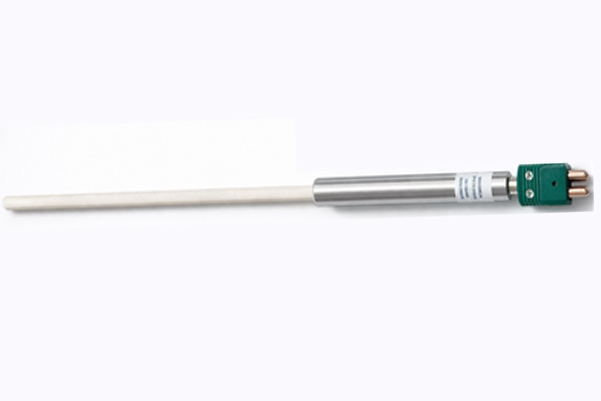

Type R Thermocouple (Platinum Rhodium -13% / Platinum): The Type R is used in very high temperature applications. It has a higher percentage of Rhodium than the Type S, which makes it more expensive. The Type R is very similar to the Type S in terms of performance. It is sometimes used in lower temperature applications because of its high accuracy and stability. Type R has a slightly higher output and improved stability over the types.

Type R Temperature Range:
  • Thermocouple grade wire, -58 to 2700F (-50 to 1480C)
  • Extension wire, 32 to 392F (0 to 200C)
Accuracy (whichever is greater):
  • Standard: +/- 1.5C or +/- .25%
  • Special Limits of Error: +/- 0.6C or 0.1%

At the point when secured by compacted mineral protection and fitting external sheath, Type R Thermocouples are usable from 32°F to 2700°F. Type R thermocouples have a higher EMF yield than type S. Type R Thermocouples are effortlessly debased, and harmed in lessening airs. Type R Thermocouples ought to be secured in comparable design as Type S Thermocouples.

Type R Thermocouples are very steady and able to do long working life when utilized in spotless, great conditions. At the point when utilized above 1100° C ( 2000° F), these thermocouples should be shielded from openness to metallic and non-metallic fumes. Type R isn't reasonable for direct addition into metallic ensuring tubes. Long haul high temperature openness causes grain development which can prompt mechanical disappointment and a negative alignment float brought about by Rhodium dissemination to unadulterated platinum leg just as from Rhodium volatilization. This sort has similar utilizations as type S, however isn't tradable with it.

  1. High precision, just little variety among items, and stable in application air.
  2. Opposition against oxidation and synthetically forceful material.
  3. Utilized as a kind of perspective temperature sensor.
  4. Usable at high temperatures
  1. Low sensitivity.
  2. Deteriorationin reducing atmosphere, such as hydrogen, and metallic vapor.
  3. Poor accuracy of compensation wire.
  4. Expensive.
  5. Low sensitivity (10 µV/°C)
Type R Thermocouple ( Platinum/Rhodium)

Type R thermocouple has better mechanical properties than Type S and is suggested for constant use in oxidizing and inactive climates around temperatures up to 1400°C and irregularly up to 1600°C. In any case, it ought not be utilized in vacuum, lessening or metallic fume airs except if appropriately ensured with clean high immaculateness (>99.5%) Alumina protectors and insurance tubes. Among valuable metal thermocouples, Type R is most generally utilized.

Type R Thermocouple Junctions
Grounded Thermocouple
grounded thermocouple junction
This is the most common junction style. A thermocouple is grounded when both thermocouple wires and the sheath are all welded together to form one junction at the probe tip. Grounded thermocouples have a very good response time because the thermocouple is making direct contact with the sheath, allowing heat to transfer easily. A drawback of the grounded thermocouple is that the thermocouple is more susceptible to electrical interference. This is because the sheath often comes into contact with the surrounding area, providing a path for interference.
Ungrounded Thermocouple
ungrounded thermocouple junction
A thermocouple is ungrounded when the thermocouple wires are welded together but they are insulated from the sheath. The wires are often separated by mineral insulation.
Protection Sheet
316 Stainless Steel
Most extreme temperature: 1650. Best erosion opposition of the austenitic hardened steel grades. Generally utilized in the food and compound industry. Subject to harming carbide precipitation in 900°F to 1600°F (482°C to 870°C).
316L Stainless Steel
Most extreme temperature: 1650°F (900°C). Same as 316 SST (04) aside from low carbon variant takes into account better welding and creation.
304 Stainless Steel
Most extreme temperature: 1650°F (900°C). Most broadly utilized low temperature sheath material. Widely utilized in food, refreshment, compound and different enterprises where erosion obstruction is required.
Industry: Subject to harming carbide precipitation in 900 to 1600°F (480 to 870°C) territory. Least expense consumption safe sheath material accessible.
304L Stainless Steel
Greatest temperature: 1650°F (900?C). Low carbon rendition of 304 SST (02). Low carbon content permits this material to be welded and warmed in the 900 to 1600°F (480 to 870°C) territory without harm to erosion opposition.
310 Stainless Steel
Most extreme temperature: 2100?F (1150?C). Mechanical and erosion opposition, like however better compared to 304 SS. Generally excellent warmth opposition.
This composite contains 25% chromium, 20% nickel. Not as flexible as 304 SS.
321 Stainless Steel
Greatest temperature: 1600°F (870°C). Like 304 SS aside from titanium settled for intergranular consumption.
This combination is intended to conquer powerlessness to carbon precipitation in the 900 to 1600°F (480 to 870°C) territory. Utilized in aviation and chemicalapplications.
446 Stainless Steel
Most extreme temperature: 2100°F (1150°C). Ferritic hardened steel which has great protection from sulfurous environments at high temperatures.
Great erosion protection from nitric corrosive, sulfuric corrosive and most alkalies. 27% chromium content gives this combination the most elevated warmth opposition of any ferritic tempered steel.
Inconel 600
Greatest temperature: 2150°F (1175°C). Most broadly utilized thermocouple sheath material. Great high temperature strength, consumption opposition, protection from chloride-particle stress erosion breaking and oxidation protection from high temperatures.
Try not to use in sulfur bearing conditions. Great in nitriding conditions.
Inconel 601
Most extreme temperature: 2150°F (1175°C) constant, 2300°F (1260°C) discontinuous. Like Alloy 600 with the expansion of aluminum for extraordinary oxidation opposition. Intended for high temperature consumption opposition.
This material is acceptable in carburizing conditions, and has great jerk break strength. Try not to use in vacuum heaters! Powerless to intergranular assault by delayed warming in 1000 to 1400°F (540 to 760°C) temperature range.
Inconel 800
Most extreme temperature: 2000°F (1095°C). Broadly utilized as radiator sheath material. Negligible use in thermocouples. Better than Alloy 600 in sulfur, cyanide salts and intertwined unbiased salts.
Powerless to intergranular assault in certain applications by openness to the temperature scope of 1000 to 1400°F (540 to 7607deg C).

Step by step instructions to measuere temperature with a Type R Thermocouple

A thermocouple circuit contains the two combination intersections, wire sand connectors and a voltage estimating gadget. At the point when the two intersections are encountering various temperatures, quantifiable current moves through the circuit. The current is identified with the temperature differential. Since the estimation is relative, one of the temperatures should be known to compute a flat out temperature. In early thermocouples, one intersection was kept at 0° C by drenching it's anything but an ice water shower. Today, one of the intersections, the "cool intersection," is electrically remunerated to keep a norm. The other intersection, the "hot intersection," is presented to the climate to be estimated.
